Segment Locking

You can lock specific segments in a segmentation to prevent them from being modified by any tools.

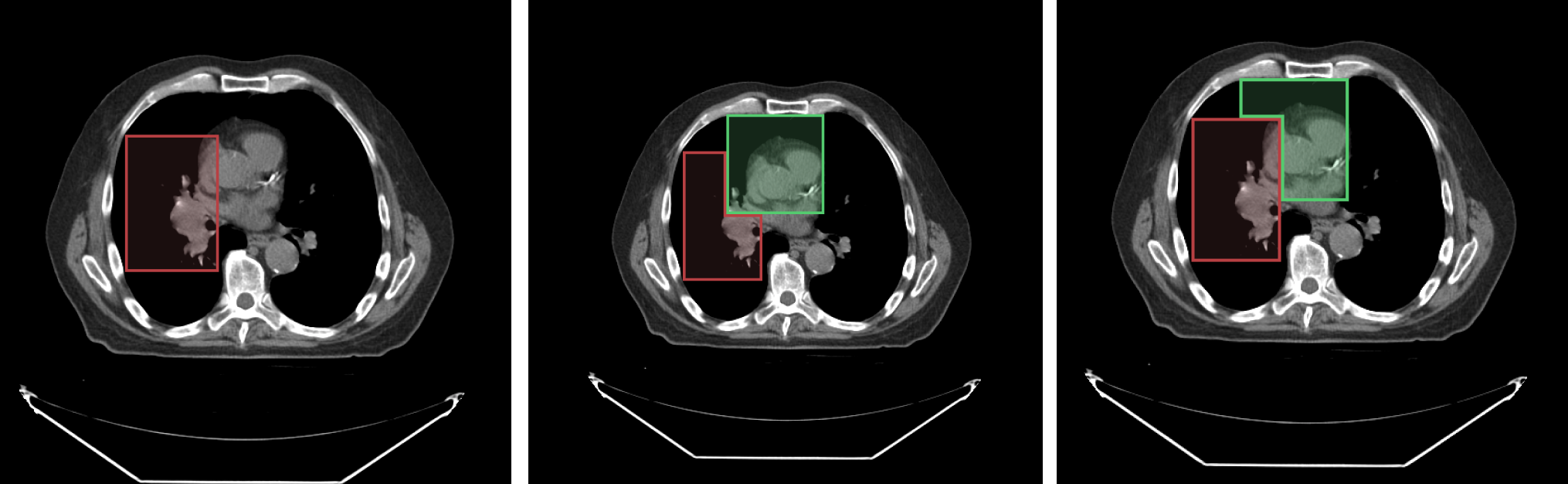

For example, consider the following image with an overlaid labelmap:

• Left image: shows segment index 1
• Middle image: shows the result when segment index 2 is drawn on top of segment index 1
• Right image: shows the result when segment index 1 is locked and segment index 2 is drawn on top of segment index 1

As shown in the locked scenario (right image), when segment index 1 is locked, it cannot be modified by new drawings.

![segment-locking-example]

API

The locking API has been updated in version 2.x to provide clearer method names and functionality:

import { segmentation } from '@cornerstonejs/tools';

// Lock/unlock a segment index in a segmentation
segmentation.locking.setSegmentIndexLocked(
  segmentationId,
  segmentIndex,
  locked
);

// Get all locked segment indices for a segmentation
const lockedIndices =
  segmentation.locking.getLockedSegmentIndices(segmentationId);

// Check if a segment index is locked
const isLocked = segmentation.locking.isSegmentIndexLocked(
  segmentationId,
  segmentIndex
);

Example Usage

// Lock segment 1 in a segmentation
segmentation.locking.setSegmentIndexLocked('segmentation1', 1, true);

// Check if segment 1 is locked
const isLocked = segmentation.locking.isSegmentIndexLocked('segmentation1', 1);
console.log(`Segment 1 is ${isLocked ? 'locked' : 'unlocked'}`);

// Get all locked segments
const lockedIndices =
  segmentation.locking.getLockedSegmentIndices('segmentation1');
console.log('Locked segment indices:', lockedIndices);

// Unlock segment 1
segmentation.locking.setSegmentIndexLocked('segmentation1', 1, false);

Key Changes in Version 2.x

1. Renamed getLockedSegments to getLockedSegmentIndices for clarity
2. The locked state is now stored in the segment data structure:

{
  segments: {
    [segmentIndex]: {
      locked: boolean,
      // other segment properties...
    }
  }
}

Note that the locking state applies to the segmentation as a whole, not to specific representations or viewports. If a segment is locked, it will be locked across all viewports and representations.

Locked segments stop the brush

The brush, the threshold brush and the scissors do not change the voxels of a locked segment, on any layer of the segmentation. The painted segment stops at the edge of the locked segment, and a locked segment never causes a new labelmap layer.

Protected segments and overlap

The overwriteMode setting of the segmentation configuration protects the segments that the brush does not overwrite:

overwriteMode	Segments that the brush overwrites	Protected segments
'all' (default)	all unlocked segments	none
'visible'	visible unlocked segments	hidden segments
'none'	none	all other unlocked segments

import { init } from '@cornerstonejs/tools';

init({
  segmentation: { overwriteMode: 'none' },
});

When a stroke would overwrite a protected segment that is not locked, the brush moves the painted segment to a new labelmap layer, and the two segments overlap. The protected segment keeps its voxels. The move and the stroke are one undo step.

Overlapping segments

Two segments can overlap only when they are on different labelmap layers. To put a segment on a layer of its own before a stroke, call segmentation.helpers.moveSegmentToPrivateLabelmap:

import { segmentation } from '@cornerstonejs/tools';

const labelmapId = segmentation.helpers.moveSegmentToPrivateLabelmap(
  segmentationId,
  segmentIndex,
  { recordHistory: true }
);

• The function moves the voxels and the binding of the segment to a new layer, and returns the id of that layer.
• If the segment is already the only segment on its layer, the segment stays on that layer.
• With recordHistory: true, the move is one undo step. Undo puts the segment back on its previous layer.
• The function triggers SEGMENTATION_DATA_MODIFIED.

After the move, a stroke of that segment can paint over the other segments, unless they are locked. Use overwriteMode: 'none' to keep the voxels of the other segments under the overlap. The brush uses the same move when a stroke would overwrite a protected segment.
